Ball type Flush Bottom Tank Valves

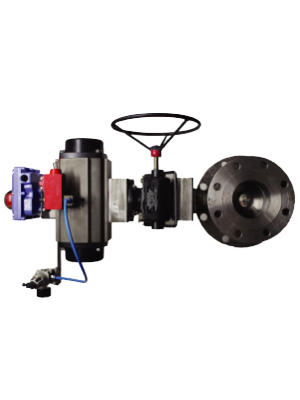

Amarama Engineers Ball type Flush Bottom Tank Valves are used for discharging of material from reactor vessels and tanks. Our Ball type Flush Bottom Tank Valves are available in full bore, reduced bore, manual & actuated with FLP solenoid valves, limit switches, manual override, positioners and other accessories available on request.

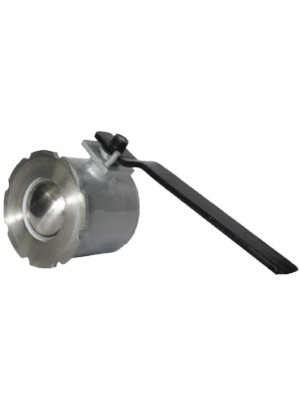

We have developed full bore Wafer Design (Sandwich type) ball type flush bottom valves for 3”(80NB) and 4”(100NB) which allows the material in the vessel to discharge faster without any reduction for the further process.

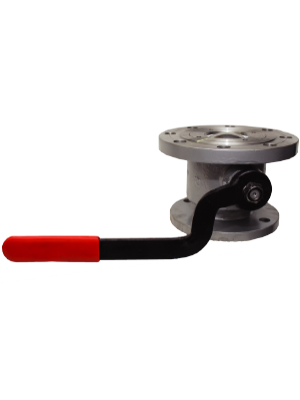

Our Manual Flush Bottom Valves come with off center handles which don’t foul with the vessel’s insulation and also help the operator know whether the valve is in an open position or a closed position, from a distance.
Amarama Engineers ball type flush bottom tank valves are currently being used for various process applications like solvents, paints, resins, polymers, tar, acids etc.
- Casted in various metals
- Manual / Pneumatically operated
- 100% shut off
- Jacketed
- Wafer Design
- Non Asbestos Gland packing
- Extended outlet & spindle
- Manual Off center handle
| MOC | CS, SS304, SS304L, SS316, SS316L, Hastelloy ‘C’ and other alloys available on request. |

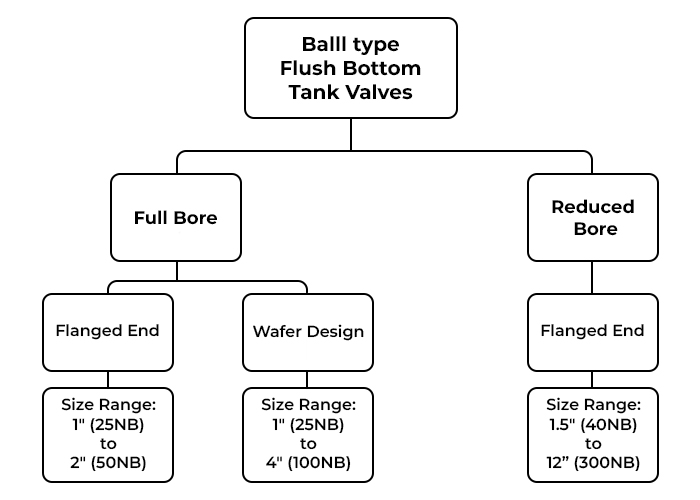

| Full Bore Size Range | Flanged End: 1”(25NB), 1.5”(40NB), 2”(50NB) |
| Wafer Design | 1” (25NB) (80NB) & 4” (100NB)” |
| Reduced Bore Size Range | 3” (80NB) x 2” (50NB) to 12” (300NB) x 10” (250NB) |
| Pressure Ratings | 150#, 300#, 600# |
| Seat MOC | PTFE (Leakage Class VI) |
| Gland Packing | PTFE / Graphoil |
| Flange Connections | BS, ANSI & DIN Standards |
| Manufacturing Standards | API 598 |
| Actuator | Rotary |
| Manual Override | Side Mounted |
